NTN K87411
Thrust Roller and Cage Assemblies
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cage and Roller Assembly
Bore Type
Round
Configuration
One
Material
High Carbon Chrome Steel
Cage Material
Aluminum Alloy
Limiting Speed - Oil
2600 RPM
Limiting Speed - Grease
650 RPM
Precision
ISO Class 0
Dynamic Load Rating
186000 N
Static Load Rating
800000 N
Operating Temperature Range
-40 to 120 ºC

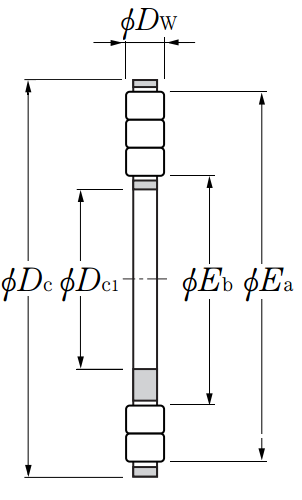

Dimensional Specifications
Dc1
55.000 mm
Dc
120.000 mm
Dw (0/-0.010)
8.000 mm
Ea
116.000 mm
Eb
66.000 mm
