NTN K87418
Thrust Roller and Cage Assemblies
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Cage and Roller Assembly
Bore Type
Round
Configuration
One
Material
High Carbon Chrome Steel
Cage Material
Aluminum Alloy
Limiting Speed - Oil
1700 RPM
Limiting Speed - Grease
430 RPM
Precision
ISO Class 0
Dynamic Load Rating
450000 N
Static Load Rating
260000 N
Operating Temperature Range
-40 to 120 ºC

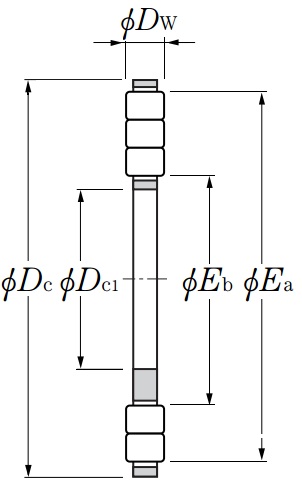

Dimensional Specifications
Dc1
90.000 mm
Dc
190.000 mm
Dw (0/-0.010)
13.000 mm
Ea
183.000 mm
Eb
104.000 mm
