NTN K89314
Thrust Roller and Cage Assemblies
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cage and Roller Assembly
Bore Type
Round
Configuration
One
Material
High Carbon Chrome Steel
Cage Material
Aluminum Alloy
Limiting Speed - Oil
2400 RPM
Limiting Speed - Grease
600 RPM
Precision
ISO Class 0
Dynamic Load Rating
205000 N
Static Load Rating
790000 N
Operating Temperature Range
-40 to 120 ºC

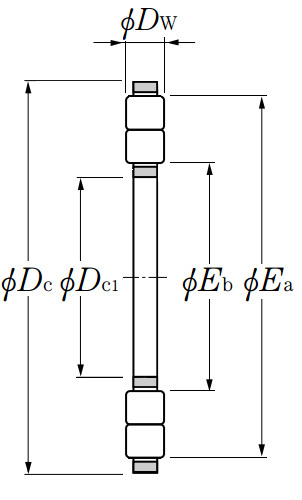

Dimensional Specifications
Dc1
70.000 mm
Dc
125.000 mm
Dw (0/-0.010)
10.000 mm
Ea
120.200 mm
Eb
79.800 mm
