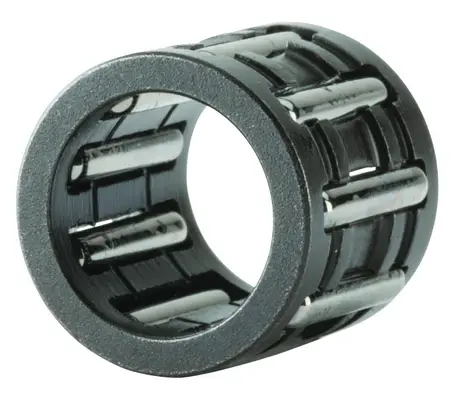

NTN KBK22X28X29.9X4
Needle Roller and Cage Assemblies
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Needle and Cage
Material
High Carbon Chrome Steel
Cage Material
Machined Steel
Enclosure
Open
Precision
ISO Class 0
Static Load Rating
38000 N
Dynamic Load Rating
26000 N
Weight
0.038 kg
Dimensional Specifications
Fw
22.000 mm
Ew
28.000 mm
Bc
29.900 mm
Bc Tolerance
0/-0.2
Lw
23.800 mm
