NTN KV34X40X39.3X1ZWS
Needle Roller and Cage Assemblies
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Needle and Cage
Material
High Carbon Chrome Steel
Cage Material
Steel
Limiting Speed - Oil
12000 RPM
Limiting Speed - Grease
8000 RPM
Enclosure
Open
Precision
ISO Class 0
Static Load Rating
73500 N
Dynamic Load Rating
39000 N
Weight
0.066 kg

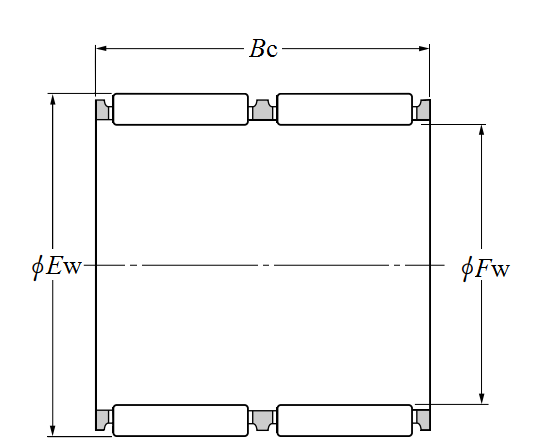

Dimensional Specifications
Fw
34.000 mm
Ew
40.000 mm
Bc
39.500 mm
Bc Tolerance
-0.2/-0.55
