NTN KV43X48X37.8XZWS
Needle Roller and Cage Assemblies
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Needle and Cage
Material
High Carbon Chrome Steel
Cage Material
Steel
Limiting Speed - Oil
9500 RPM
Limiting Speed - Grease
6500 RPM
Enclosure
Open
Precision
ISO Class 0
Static Load Rating
96000 N
Dynamic Load Rating
41000 N
Weight
0.058 kg

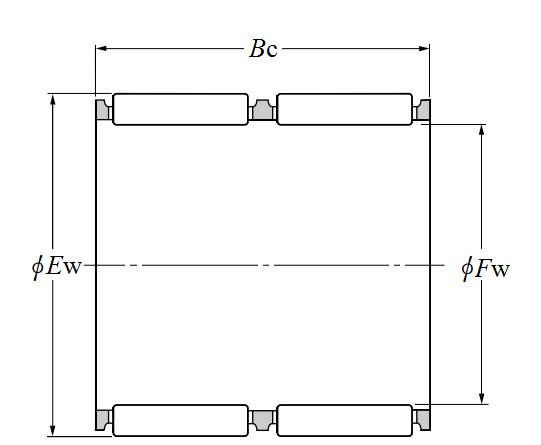

Dimensional Specifications
Fw
43.000 mm
Ew
48.000 mm
Bc
38.000 mm
Bc Tolerance
-0.2/-0.55
