NTN KV50X58X57.8XZWS
Needle Roller and Cage Assemblies
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Needle and Cage
Material
High Carbon Chrome Steel
Cage Material
Steel
Limiting Speed - Oil
8000 RPM
Limiting Speed - Grease
5500 RPM
Enclosure
Open
Precision
ISO Class 0
Static Load Rating
181000 N
Dynamic Load Rating
83500 N
Weight
0.188 kg

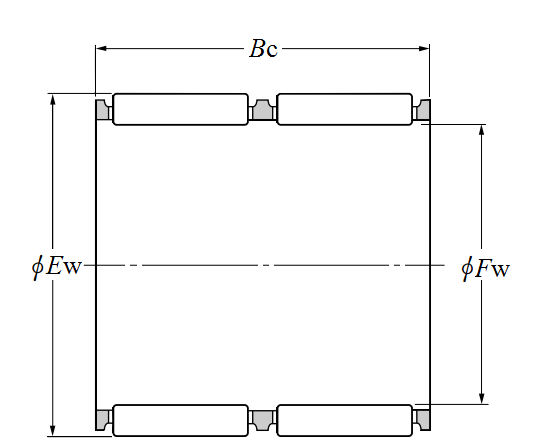

Dimensional Specifications
Fw
50.000 mm
Ew
58.000 mm
Bc
58.000 mm
Bc Tolerance
-0.2/-0.55
