NTN M1-060908
Inner Ring
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Inner Ring
Bore Type
Round
Material
High Carbon Chrome Steel
Tolerance
ISO Class 0 (RBEC 1)
Weight
0.013 kg

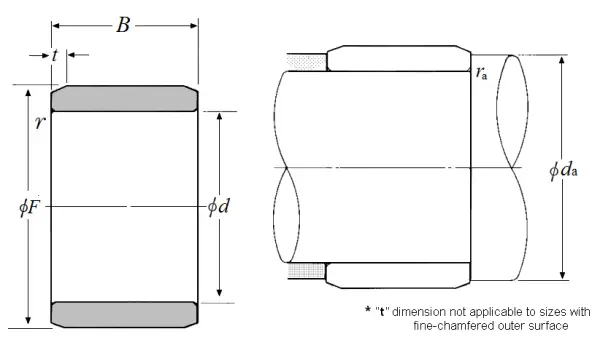

Dimensional Specifications
d
9.525 mm
F
14.288 mm
B
12.950 mm
r
0.600 mm
da min
13.500 mm
ras max
0.600 mm
