NTN M1-081212
Inner Ring
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Inner Ring
Bore Type
Round
Material
High Carbon Chrome Steel
Tolerance
ISO Class 0 (RBEC 1)
Weight
0.024 kg

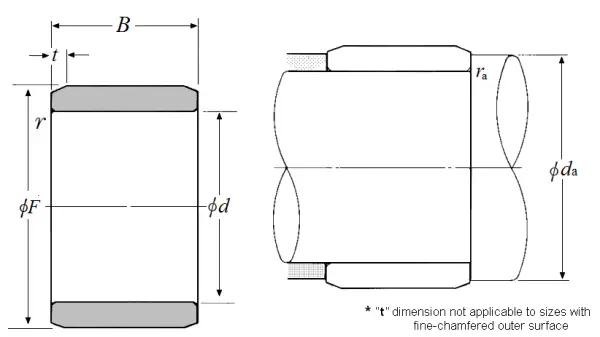

Dimensional Specifications
d
12.700 mm
F
19.050 mm
B
19.300 mm
r
1.000 mm
da min
17.500 mm
ras max
1.000 mm
