NTN M1-10412448
Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Inner Ring
Bore Type
Round
Material
High Carbon Chrome Steel
Tolerance
ISO Class 0 (RBEC 1)
Weight
5.300 kg

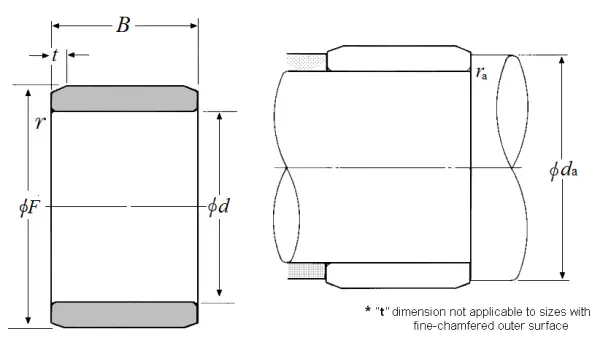

Dimensional Specifications
d
165.100 mm
F
196.850 mm
B
76.580 mm
r
3.000 mm
t
3.000 mm
da min
178.000 mm
ras max
3 mm
