NTN M1-12814848
Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Inner Ring
Bore Type
Round
Material
High Carbon Chrome Steel
Tolerance
ISO Class 0 (RBEC 1)
Weight
6.500 kg

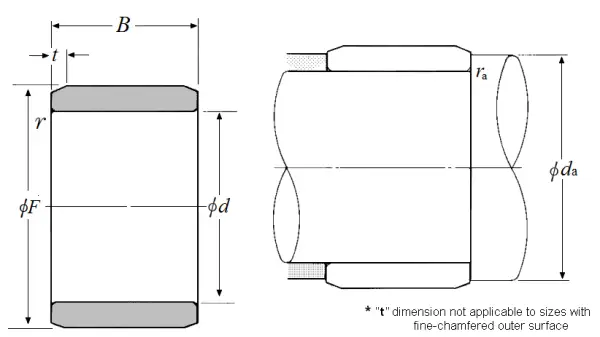

Dimensional Specifications
d
203.200 mm
F
234.950 mm
B
76.580 mm
r
4.000 mm
t
3.500 mm
da min
219.000 mm
ras max
4.000 mm
