NTN M1-263220
Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Inner Ring
Bore Type
Round
Material
High Carbon Chrome Steel
Tolerance
ISO Class 0 (RBEC 1)
Weight
0.175 kg

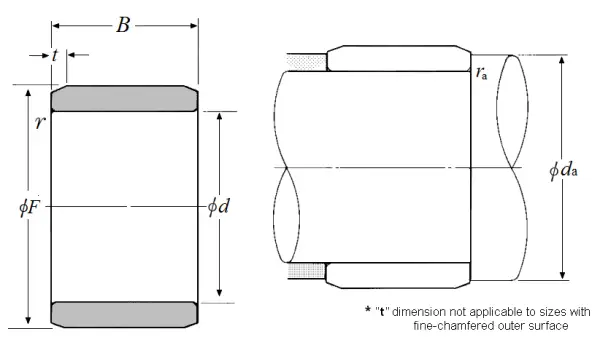

Dimensional Specifications
d
41.275 mm
F
50.800 mm
B
32.000 mm
r
1.500 mm
t
2.000 mm
da min
48.000 mm
ras max
1.500 mm
