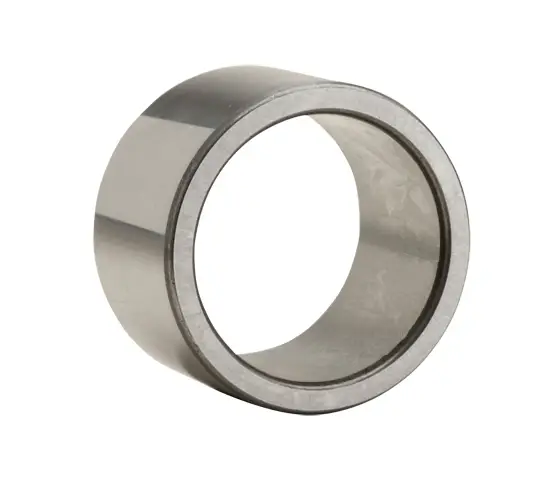

NTN M1-506032
Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Inner Ring
Bore Type
Round
Material
High Carbon Chrome Steel
Tolerance
ISO Class 0 (RBEC 1)
Weight
0.862 kg

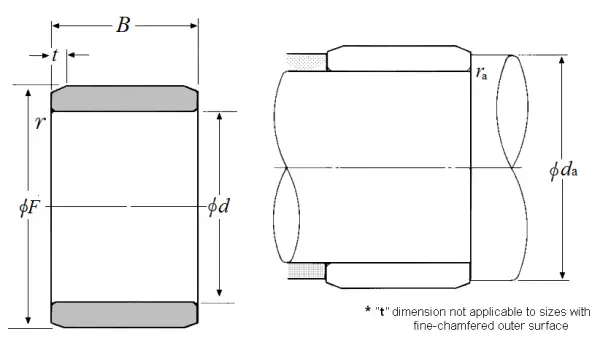

Dimensional Specifications
d
79.375 mm
F
95.250 mm
B
51.050 mm
r
2.500 mm
t
2.200 mm
da min
88.500 mm
ras max
2.500 mm
