NTN M1-627236
Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Inner Ring
Bore Type
Round
Material
High Carbon Chrome Steel
Tolerance
ISO Class 0 (RBEC 1)
Weight
1.150 kg

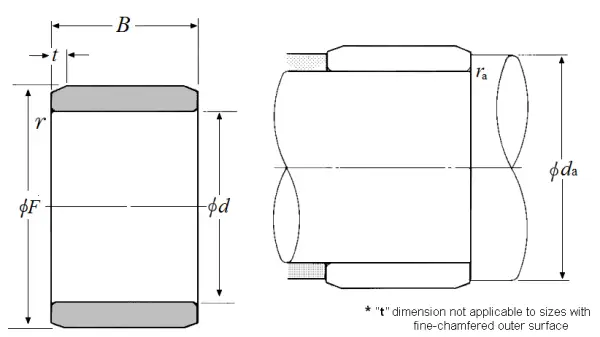

Dimensional Specifications
d
98.425 mm
F
114.300 mm
B
57.400 mm
r
2.500 mm
t
2.500 mm
da min
107.500 mm
ras max
2.500 mm
