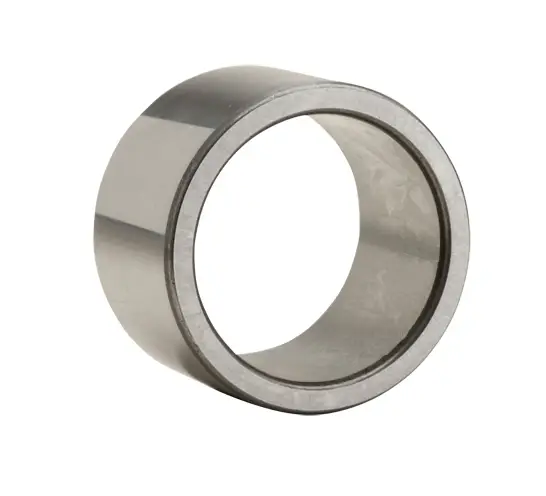

NTN M1-648040
Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Inner Ring
Bore Type
Round
Material
High Carbon Chrome Steel
Tolerance
ISO Class 0 (RBEC 1)
Weight
2.280 kg

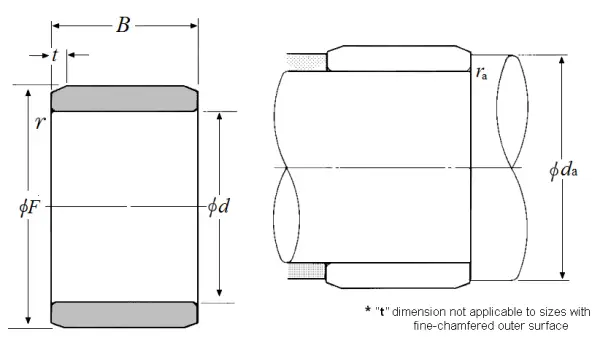

Dimensional Specifications
d
101.600 mm
F
127.000 mm
B
63.880 mm
r
2.500 mm
t
2.500 mm
da min
110.500 mm
ras max
2.500 mm
