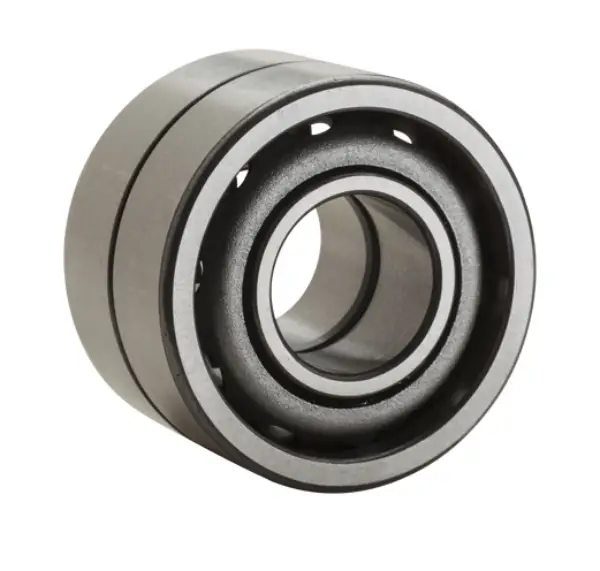

The NTN ML7004HVDUJ74S Is a Duplex Machline Angular Contact Ball Bearing
What basic product identity does the data provide?
The ML7004HVDUJ74S is an NTN bearing within the Duplex Machline Angular Contact Ball Bearings series. It is listed under precision angular contact ball bearings and uses a round bore.
- Brand: NTN
- Model: ML7004HVDUJ74S
- Bearing type: Angular contact ball bearing
- Configuration: Two, light preload
- Enclosure: Open
The ML7004HVDUJ74S Has Documented Dimensional and Contact Details

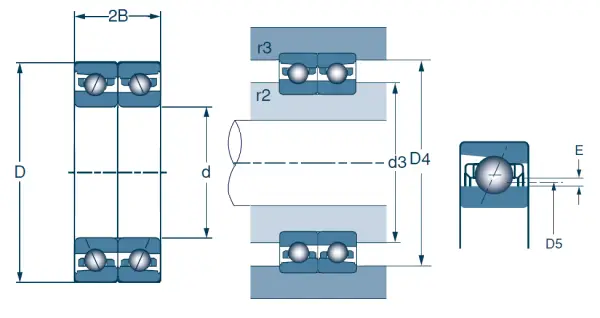

What dimensions are specified for this bearing?
The supplied data identifies the bearing dimensions in metric units, including a 20.000 mm bore, 42.000 mm outside diameter, and 24.000 mm duplex width.
- Bore, d: 20.000 mm
- Outside diameter, D: 42.000 mm
- Single width, B: 12.000 mm
- Duplex width, 2B: 24.000 mm
- Contact angle: 25º
Additional supplied dimensions include r2 max 0.600 mm, r3 max 0.300 mm, d2 26.600 mm, d3 25.300 mm, D1 34.300 mm, D4 35.700 mm, D5 27.900 mm, and E 2.630 mm.
The Bearing Uses Specified Materials, Cage, Precision, and Temperature Data
Which construction and specification details are available?
The product data lists high carbon chrome steel as the bearing material, steel balls, and a stratified phenolic cage. The stated precision level is ISO Class 4, with an operating temperature range of -40 to 120 ºC.
- Bearing material: High carbon chrome steel
- Ball material: Steel
- Cage type: Stratified
- Cage material: Phenolic
- Precision class: ISO Class 4
- Operating temperature range: -40 to 120 ºC
