NTN ML71906HV
Single Row Machline Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Stratified
Cage Material
Phenolic
Ball Material
Steel
Limiting Speed - Oil
50000 RPM
Limiting Speed - Grease
37500 RPM
Configuration
One
Static Load Rating
3100 N
Dynamic Load Rating
4400 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

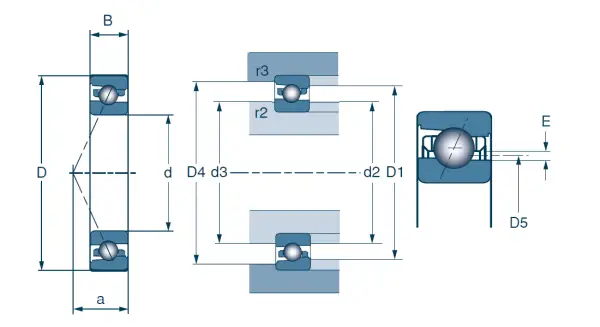

Dimensional Specifications
d
30.000 mm
D
47.000 mm
B
9.000 mm
r2 max
0.300 mm
r3 max
0.200 mm
Contact Angle
25 º
a (Load Center)
13.000 mm
d2
34.500 mm
d3
35.100 mm
D1
40.700 mm
D4
41.800 mm
D5
1.4252 mm
E
36.200 mm
Double Row Width
18.000 mm
Triple Row Width
27.000 mm
Quadruple Row Width
36.000 mm
