NTN ML71907HV
Single Row Machline Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Stratified
Cage Material
Phenolic
Ball Material
Steel
Limiting Speed - Oil
43000 RPM
Limiting Speed - Grease
32500 RPM
Configuration
One
Static Load Rating
3100 N
Dynamic Load Rating
4800 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

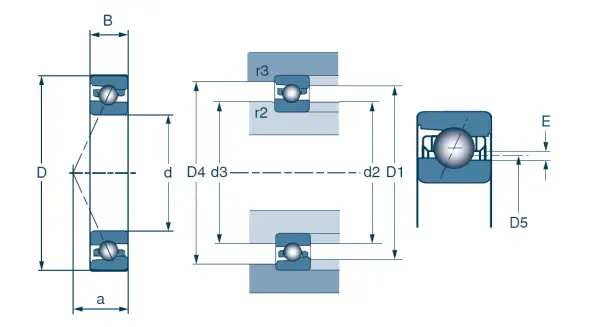

Dimensional Specifications
d
35.000 mm
D
55.000 mm
B
10.000 mm
r2 max
0.600 mm
r3 max
0.200 mm
Contact Angle
25 º
a (Load Center)
15.000 mm
d2
40.800 mm
d3
41.400 mm
D1
47.100 mm
D4
48.200 mm
D5
1.6811 mm
E
42.700 mm
Double Row Width
20.000 mm
Triple Row Width
30.000 mm
Quadruple Row Width
40.000 mm
