NTN ML71908CV
Single Row Machline Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Stratified
Cage Material
Phenolic
Ball Material
Steel
Limiting Speed - Oil
42000 RPM
Limiting Speed - Grease
31500 RPM
Configuration
One
Static Load Rating
3150 N
Dynamic Load Rating
6950 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

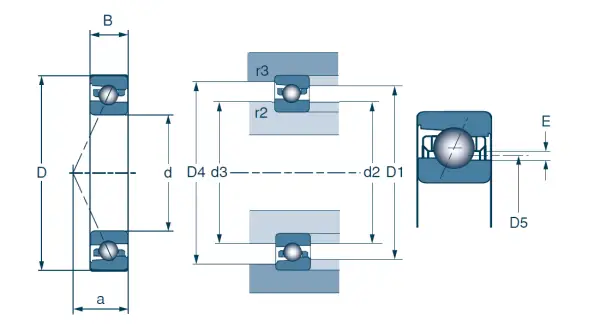

Dimensional Specifications
d
40.000 mm
D
62.000 mm
B
12.000 mm
r2 max
0.600 mm
r3 max
0.200 mm
Contact Angle
17 º
a (Load Center)
13.000 mm
d2
45.300 mm
d3
46.800 mm
D1
53.100 mm
D4
54.400 mm
D5
1.8740 mm
E
47.600 mm
Double Row Width
24.000 mm
Triple Row Width
36.000 mm
Quadruple Row Width
48.000 mm
