NTN ML71908HVDUJ74S
Duplex Machline Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Stratified
Cage Material
Phenolic
Ball Material
Steel
Precision
ISO Class 4
Configuration
Two
Preload
Light
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

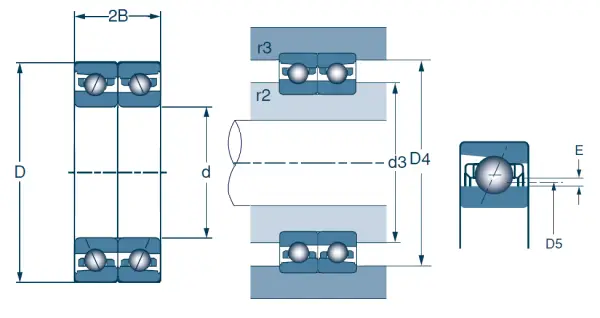

Dimensional Specifications
d
40.000 mm
D
62.000 mm
B
12.000 mm
2B
24.000 mm
r2 max
0.600 mm
r3 max
0.200 mm
Contact Angle
25 º
d2
46.800 mm
d3
45.300 mm
D1
53.100 mm
D4
54.400 mm
D5
47.600 mm
E
2.250 mm
