The ML71915HVDUJ74S is an NTN duplex Machline angular contact ball bearing supplied in a two-bearing, light-preload configuration. It belongs to the Duplex Machline Angular Contact Ball Bearings series and is classified within precision angular contact ball bearings.
The bearing is branded NTN and identified as an angular contact ball bearing. Its product series is Duplex Machline Angular Contact Ball Bearings, and the stated configuration is two bearings with light preload.

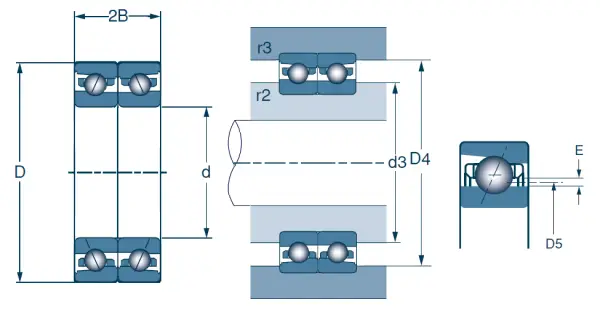

The ML71915HVDUJ74S has a round bore and specified principal dimensions of 75.000 mm bore, 105.000 mm outside diameter, and 32.000 mm duplex width. The single-bearing width is listed as 16.000 mm, and the contact angle is 25°.
The supplied data lists r2 max as 1.000 mm and r3 max as 0.300 mm. Additional reference dimensions include d2 at 84.000 mm, d3 at 81.500 mm, D1 at 97.000 mm, D4 at 100.500 mm, D5 at 86.900 mm, and E at 1.630 mm.
The ML71915HVDUJ74S uses high carbon chrome steel bearing material, steel balls, and a stratified phenolic cage. It has an open enclosure and a stated operating temperature range of -40 to 120 ºC.
Use the listed model, dimensions, contact angle, precision class, configuration, materials, cage type, enclosure, and operating temperature range when verifying suitability. Any load, speed, mounting, application, or compatibility detail not stated in the supplied data should be confirmed independently before selection.
