NTN MLCH7007CVUJ74S
Single Row Machline Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Hybrid Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Stratified
Cage Material
Phenolic
Limiting Speed - Oil
57200 RPM
Limiting Speed - Grease
33000 RPM
Precision
ISO Class 4
Configuration
One
Preload
Light
Static Load Rating
3100 N
Dynamic Load Rating
10500 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

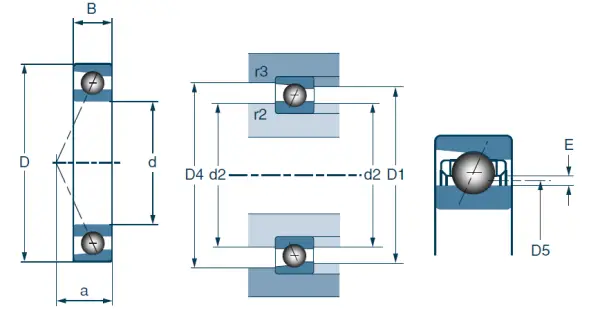

Dimensional Specifications
d
35.000 mm
D
62.000 mm
B
14.000 mm
r2 max
1.000 mm
r3 max
0.300 mm
Contact Angle
17 º
a (Load Center)
13.000 mm
d2
41.500 mm
d3
43.200 mm
D1
51.500 mm
D4
53.600 mm
D5
1.7559 mm
E
44.600 mm
Double Row Width
28.000 mm
Triple Row Width
42.000 mm
Quadruple Row Width
56.000 mm
