(BRAND): NTN
(Availability):In Stock

Detailed data of MLCH7010HVDUJ74S Duplex Machline Angular Contact Ball Bearings

Technical Specifications

Type Angular Contact Ball Bearing
Bore Type Round
Material High Carbon Chrome Steel
Cage Type Stratified
Cage Material Phenolic
Ball Material Ceramic
Precision ISO Class 4
Configuration Two
Preload Light
Enclosure Open
Operating Temperature Range -40 to 120 ºC

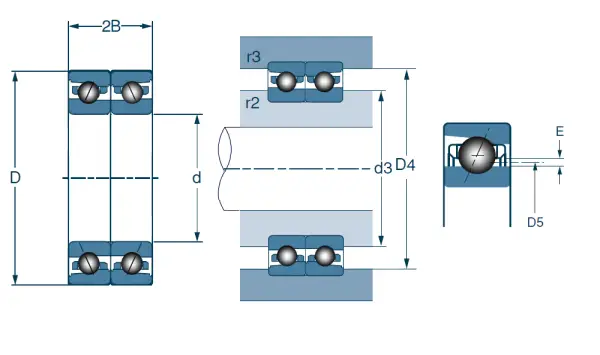

Dimensional Specifications

d 50.000 mm
D 80.000 mm
B 16.000 mm
2B 32.000 mm
r2 max 1.000 mm
r3 max 0.300 mm
Contact Angle 25 º
d2 59.700 mm
d3 58.000 mm
D1 68.000 mm
D4 70.000 mm
D5 61.000 mm
E 3.000 mm

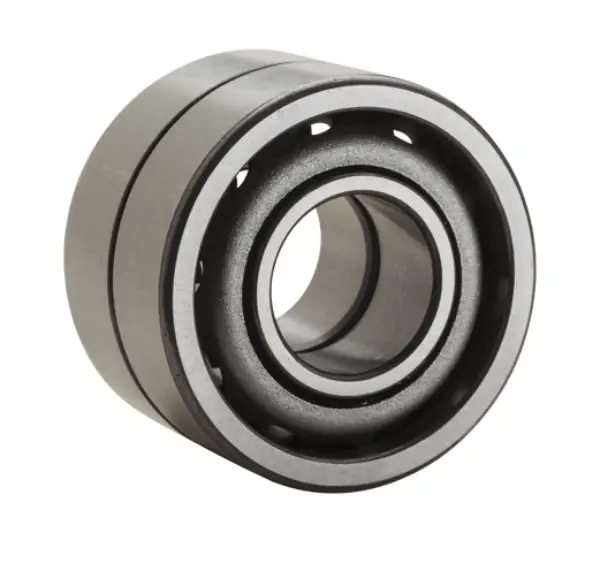

NTN MLCH7010HVDUJ74S Duplex Angular Contact Bearing

What is the MLCH7010HVDUJ74S?

The MLCH7010HVDUJ74S is an NTN bearing in the Duplex Machline Angular Contact Ball Bearings product series. It is classified as an angular contact ball bearing with a round bore and a 25° contact angle.

  • Brand: NTN
  • Series: Duplex Machline Angular Contact Ball Bearings
  • Bearing type: Angular contact ball bearing
  • Bore type: Round
  • Configuration: Duplex, two bearings
  • Enclosure: Open

MLCH7010HVDUJ74S Dimensions and Construction

What dimensions and materials are listed for this bearing?

The supplied data lists the bearing dimensions and main construction materials. The bearing has a 50.000 mm bore, 80.000 mm outside diameter, and 16.000 mm single-bearing width, with a 2B duplex width of 32.000 mm.

  1. Bore d: 50.000 mm
  2. Outside diameter D: 80.000 mm
  3. Width B: 16.000 mm
  4. Duplex width 2B: 32.000 mm
  5. r2 max: 1.000 mm
  6. r3 max: 0.300 mm

Additional dimensional values include d2 59.700 mm, d3 58.000 mm, D1 68.000 mm, D4 70.000 mm, D5 61.000 mm, and E 3.000 mm.

  • Bearing material: High carbon chrome steel
  • Ball material: Ceramic
  • Cage type: Stratified cage
  • Cage material: Phenolic

Precision and Operating Details for MLCH7010HVDUJ74S

What precision, preload, and temperature information is provided?

The MLCH7010HVDUJ74S is specified to ISO Class 4 precision and is arranged as a two-bearing duplex set with light preload. The open configuration has no enclosure listed.

  • Precision class: ISO Class 4
  • Preload: Light
  • Contact angle: 25°
  • Operating temperature range: -40 to 120 ºC

The product category path places it within NTN precision angular contact ball bearings in the Machline high-precision bearing range.
