NTN MLCH71916HVDUJ74S
Duplex Machline Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Stratified
Cage Material
Phenolic
Ball Material
Ceramic
Precision
ISO Class 4
Configuration
Two
Preload
Light
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

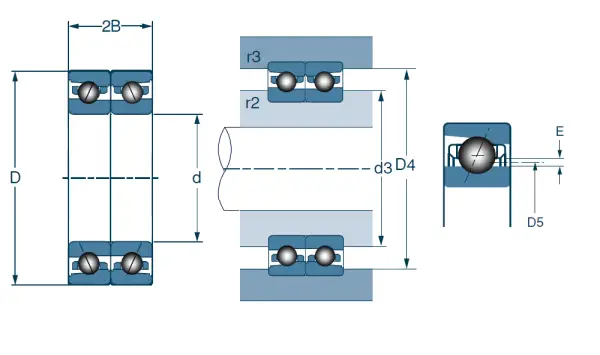

Dimensional Specifications
d
80.000 mm
D
110.000 mm
B
16.000 mm
2B
32.000 mm
r2 max
1.000 mm
r3 max
0.300 mm
Contact Angle
25 º
d2
89.000 mm
d3
86.500 mm
D1
102.000 mm
D4
105.500 mm
D5
91.900 mm
E
1.630 mm
