NTN MLCH71920HVDUJ74S
Duplex Machline Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Stratified
Cage Material
Phenolic
Ball Material
Ceramic
Precision
ISO Class 4
Configuration
Two
Preload
Light
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

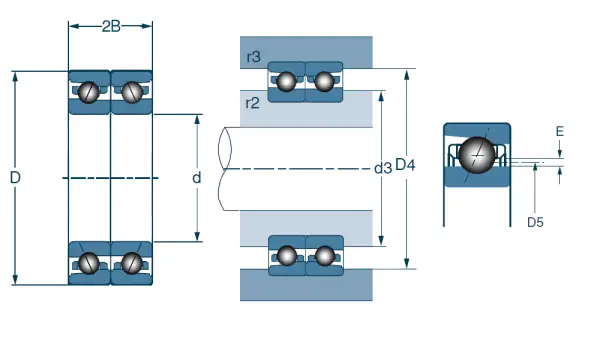

Dimensional Specifications
d
100.000 mm
D
140.000 mm
B
20.000 mm
2B
40.000 mm
r2 max
1.100 mm
r3 max
0.600 mm
Contact Angle
25 º
d2
112.500 mm
d3
109.500 mm
D1
128.500 mm
D4
133.000 mm
D5
115.900 mm
E
2.020 mm
