NTN MLE7001CV
Single Row Machline Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Stratified
Cage Material
Phenolic
Ball Material
Steel
Seal Type
Non-Contact
Seal Material
Nitrile Rubber
Configuration
One
Static Load Rating
3050 N
Dynamic Load Rating
2280 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

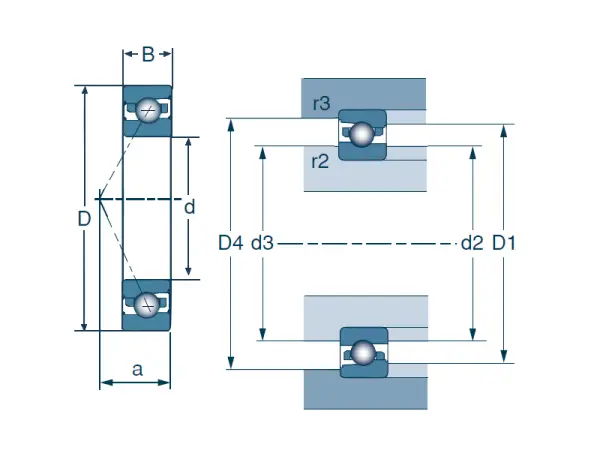

Dimensional Specifications
d
12.000 mm
D
28.000 mm
B
8.000 mm
r2 max
0.300 mm
r3 max
0.150 mm
Contact Angle
17 º
a (Load Center)
7.000 mm
d2
16.200 mm
d3
16.700 mm
D1
21.500 mm
D4
22.100 mm
Double Row Width
16.000 mm
Triple Row Width
24.000 mm
Quadruple Row Width
32.000 mm
