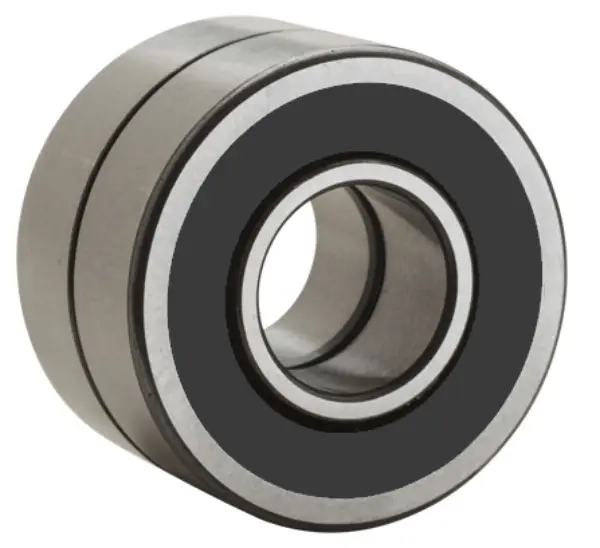

NTN MLE7012HVDUJ74S
Duplex Machline Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Stratified
Cage Material
Phenolic
Ball Material
Steel
Seal Type
Non-Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 4
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

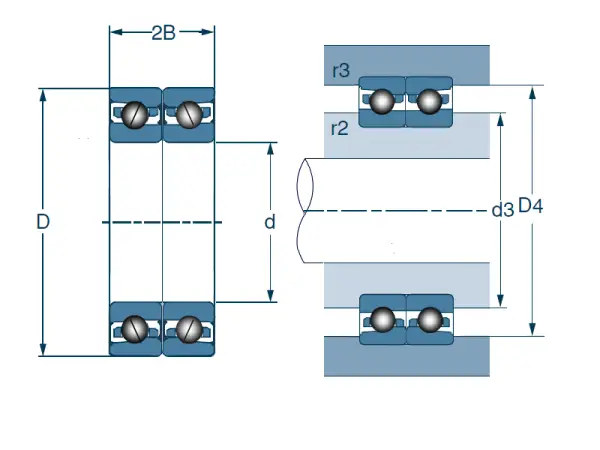

Dimensional Specifications
d
60.000 mm
D
95.000 mm
B
18.000 mm
2B
36.000 mm
r2 max
1.100 mm
r3 max
0.600 mm
Contact Angle
25 º
d2
70.500 mm
d3
71.500 mm
D1
84.500 mm
D4
88.500 mm
