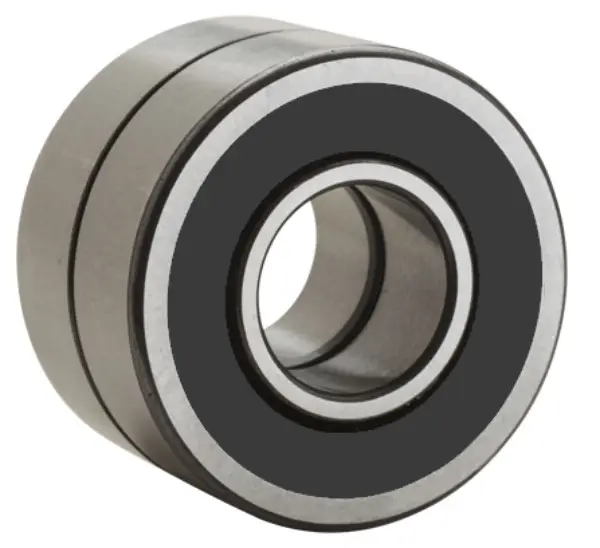

The NTN MLE71900CVDUJ74S is part of the Duplex Machline Angular Contact Ball Bearings series within NTN's precision angular contact ball bearing range.
It is an angular contact ball bearing with a round bore, a 17° contact angle, double non-contact seals, and a duplex arrangement represented by the supplied 2B width.
Supplied product data identifies high carbon chrome steel bearing material, steel balls, a stratified phenolic cage, and nitrile rubber non-contact seal material.
The bearing is specified with high carbon chrome steel construction, steel balls, a phenolic cage, and double non-contact nitrile rubber seals.

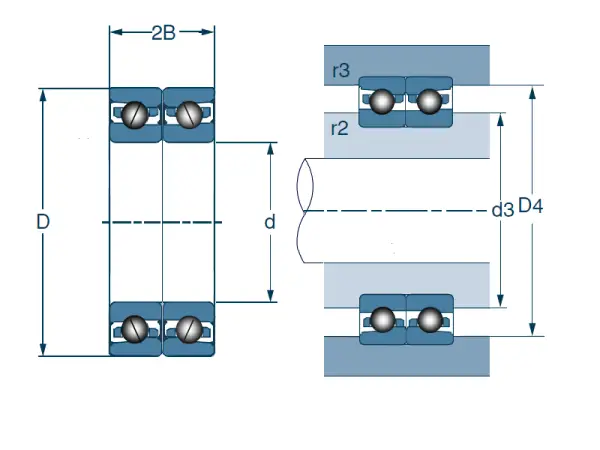

The supplied dimensional data for the MLE71900CVDUJ74S includes the following values:
The MLE71900CVDUJ74S has a 10.000 mm bore, 22.000 mm outside diameter, 6.000 mm single width, and 12.000 mm duplex width according to the supplied data.
