NTN MLE71902HV
Single Row Machline Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Stratified
Cage Material
Phenolic
Ball Material
Steel
Seal Type
Non-Contact
Seal Material
Nitrile Rubber
Configuration
One
Static Load Rating
3050 N
Dynamic Load Rating
2030 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

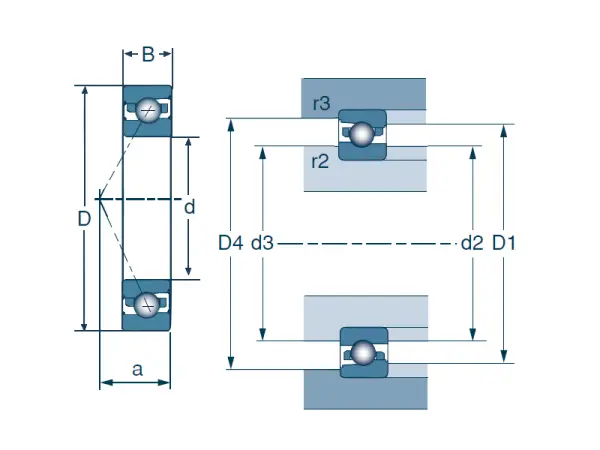

Dimensional Specifications
d
15.000 mm
D
28.000 mm
B
7.000 mm
r2 max
0.300 mm
r3 max
0.100 mm
Contact Angle
25 º
a (Load Center)
9.000 mm
d2
18.300 mm
d3
18.700 mm
D1
23.300 mm
D4
23.700 mm
Double Row Width
14.000 mm
Triple Row Width
21.000 mm
Quadruple Row Width
28.000 mm
