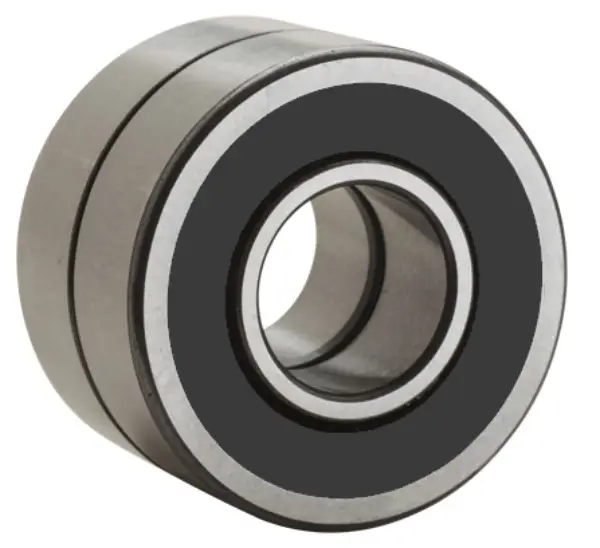

NTN MLE71905CVDUJ84S

Duplex Machline Angular Contact Ball Bearings
(BRAND):NTN
(Availability):In Stock

Detailed data of

MLE71905CVDUJ84S

Technical Specifications

Type Angular Contact Ball Bearing
Bore Type Round
Material High Carbon Chrome Steel
Cage Type Stratified
Cage Material Phenolic
Ball Material Steel
Seal Type Non-Contact
Seal Material Nitrile Rubber
Precision ISO Class 4
Enclosure Double Sealed
Operating Temperature Range -40 to 120 ºC

Dimensional Specifications

d 25.000 mm
D 42.000 mm
B 9.000 mm
2B 18.000 mm
r2 max 0.300 mm
r3 max 0.200 mm
Contact Angle 17 º
d2 30.000 mm
d3 30.600 mm
D1 36.200 mm
D4 37.300 mm

NTN MLE71905CVDUJ84S Duplex Machline Angular Contact Ball Bearing

What bearing type and series does this part belong to?

The NTN MLE71905CVDUJ84S is listed in the Duplex Machline Angular Contact Ball Bearings series under NTN precision angular contact ball bearings. It is an angular contact ball bearing with a round bore and a 17° contact angle.

  • Brand: NTN
  • Series: Duplex Machline Angular Contact Ball Bearings
  • Bearing type: Angular contact ball bearing
  • Bore type: Round
  • Contact angle: 17°

Technical Construction and Precision Details

What materials, enclosure, and precision class are specified?

The product data identifies high carbon chrome steel bearing material, steel balls, a stratified phenolic cage, and a double-sealed arrangement. The non-contact seals use nitrile rubber, and the stated precision rating is ISO Class 4.

  • Material: High carbon chrome steel
  • Ball material: Steel
  • Cage: Stratified phenolic cage
  • Enclosure: Double sealed with non-contact nitrile rubber seals
  • Precision class: ISO Class 4
  • Operating temperature range: -40 to 120 ºC

Dimensional Specifications for MLE71905CVDUJ84S

What dimensions and related values are provided?

The listed dimensional specifications include a 25.000 mm bore, 42.000 mm outside diameter, 9.000 mm single width, and 18.000 mm duplex width. Additional ring and fillet dimensions are shown below.

  1. d: 25.000 mm
  2. D: 42.000 mm
  3. B: 9.000 mm
  4. 2B: 18.000 mm
  5. r2 max: 0.300 mm
  6. r3 max: 0.200 mm
  7. d2: 30.000 mm
  8. d3: 30.600 mm
  9. D1: 36.200 mm
  10. D4: 37.300 mm
