NTN MLE71907CV
Single Row Machline Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Stratified
Cage Material
Phenolic
Ball Material
Steel
Seal Type
Non-Contact
Seal Material
Nitrile Rubber
Configuration
One
Static Load Rating
3100 N
Dynamic Load Rating
5100 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

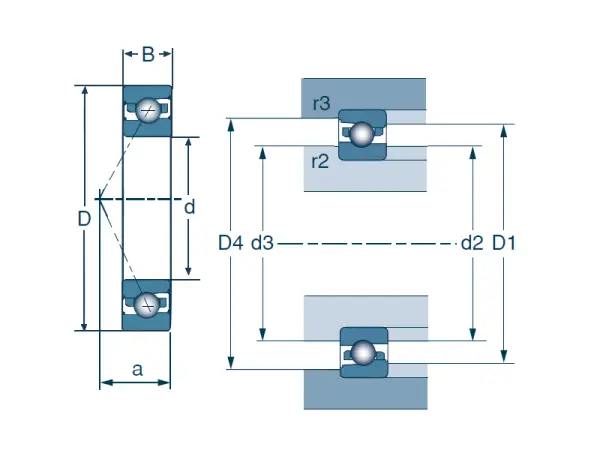

Dimensional Specifications
d
35.000 mm
D
55.000 mm
B
10.000 mm
r2 max
0.600 mm
r3 max
0.200 mm
Contact Angle
17 º
a (Load Center)
11.000 mm
d2
40.800 mm
d3
41.400 mm
D1
47.100 mm
D4
48.200 mm
Double Row Width
20.000 mm
Triple Row Width
30.000 mm
Quadruple Row Width
40.000 mm
