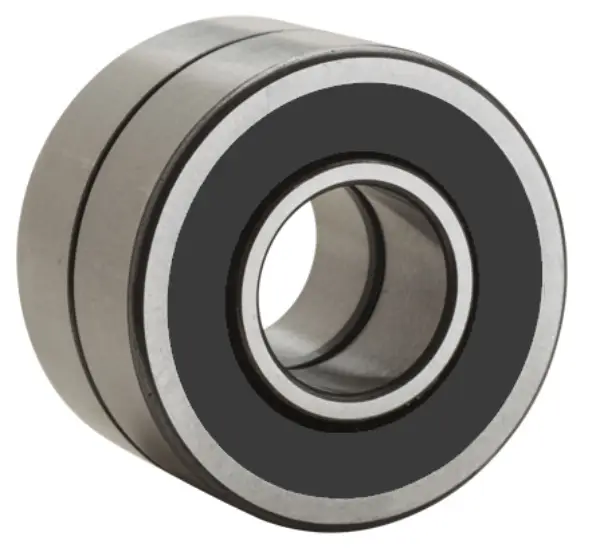

NTN MLE71912HVDUJ84S
Duplex Machline Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Stratified
Cage Material
Phenolic
Ball Material
Steel
Seal Type
Non-Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 4
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
60.000 mm
D
85.000 mm
B
13.000 mm
2B
26.000 mm
r2 max
1.000 mm
r3 max
0.300 mm
Contact Angle
25 º
d2
65.600 mm
d3
67.100 mm
D1
78.800 mm
D4
81.000 mm
