NTN MLE71913CV
Single Row Machline Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Stratified
Cage Material
Phenolic
Ball Material
Steel
Seal Type
Non-Contact
Seal Material
Nitrile Rubber
Configuration
One
Static Load Rating
3200 N
Dynamic Load Rating
17600 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

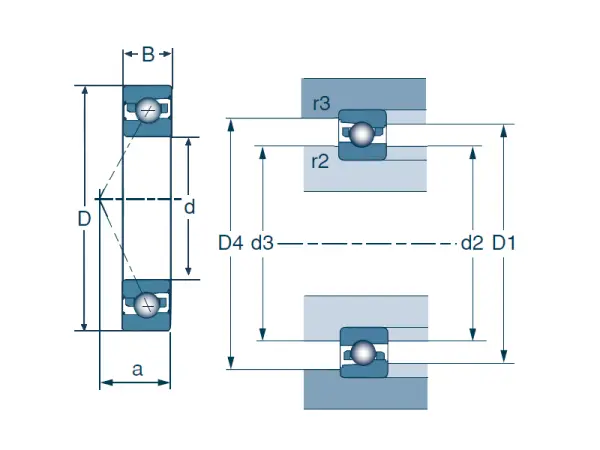

Dimensional Specifications
d
65.000 mm
D
90.000 mm
B
13.000 mm
r2 max
1.000 mm
r3 max
0.600 mm
Contact Angle
17 º
a (Load Center)
17.000 mm
d2
70.500 mm
d3
72.500 mm
D1
83.500 mm
D4
86.500 mm
Double Row Width
26.000 mm
Triple Row Width
39.000 mm
Quadruple Row Width
52.000 mm
