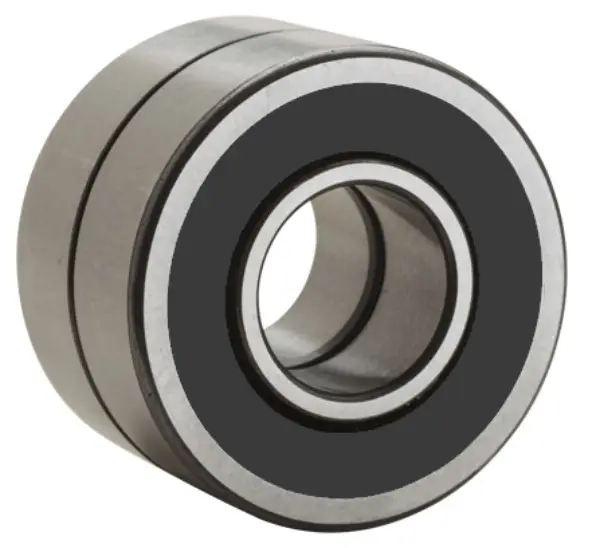

NTN MLECH7002CVDUJ74S
Duplex Machline Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Hybrid Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Stratified
Cage Material
Phenolic
Ball Material
Ceramic
Seal Type
Non-Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 4
Configuration
Two
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

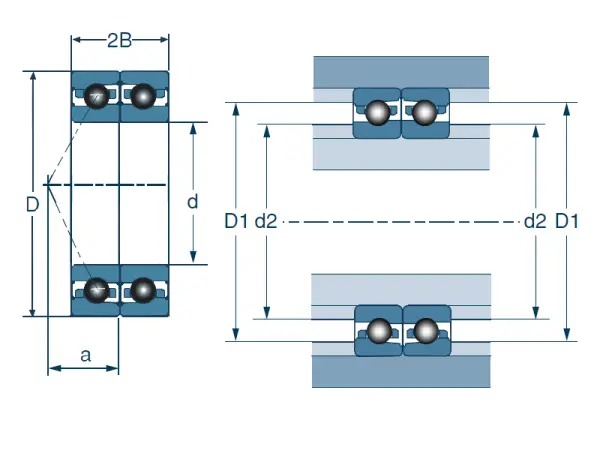

Dimensional Specifications
d
15.000 mm
D
32.000 mm
B
9.000 mm
2B
9.000 mm
r2 max
0.300 mm
r3 max
0.150 mm
Contact Angle
17 º
d2
19.400 mm
d3
20.200 mm
D1
25.700 mm
D4
26.800 mm
