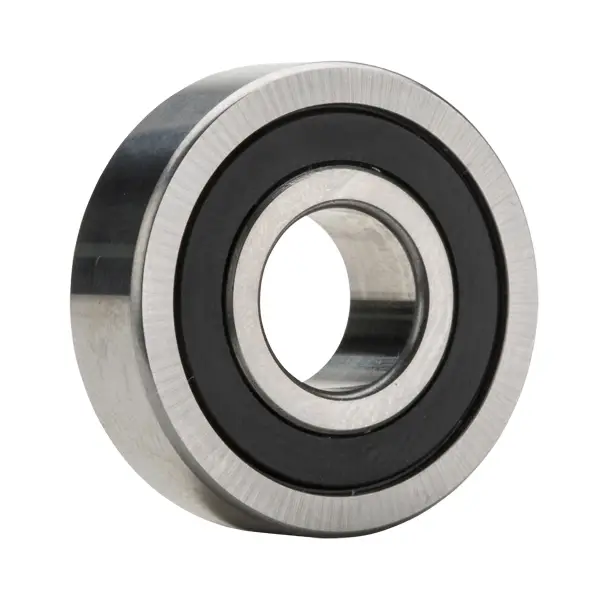

NTN MLECH7021CV
Single Row Machline Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Hybrid Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Stratified
Cage Material
Phenolic
Ball Material
Ceramic
Seal Type
Non-Contact
Seal Material
Nitrile Rubber
Configuration
One
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
105.000 mm
D
160.000 mm
B
26.000 mm
r2 max
2.000 mm
r3 max
1.000 mm
Contact Angle
17 º
a (Load Center)
31.000 mm
d2
119.000 mm
d3
123.000 mm
D1
143.000 mm
D4
149.000 mm
Double Row Width
52.000 mm
Triple Row Width
78.000 mm
Quadruple Row Width
104.000 mm
