NTN NA49/32S
Clearance-Adjustable Needle Roller Bearings w/ Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Clearance-Adjustable Needle Roller Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Material
Steel
Limiting Speed - Oil
10000 RPM
Limiting Speed - Grease
6700 RPM
Precision
ISO Class 0
Configuration
One
Enclosure
Open
Bearing Design
w/ Inner Ring
Oil Hole
w/ Oil Hole
Radial Internal Clearance
CN
Static Load Rating
27800 N
Dynamic Load Rating
17600 N
Weight
0.157 kg
Operating Temperature Range
-40 to 120 ºC

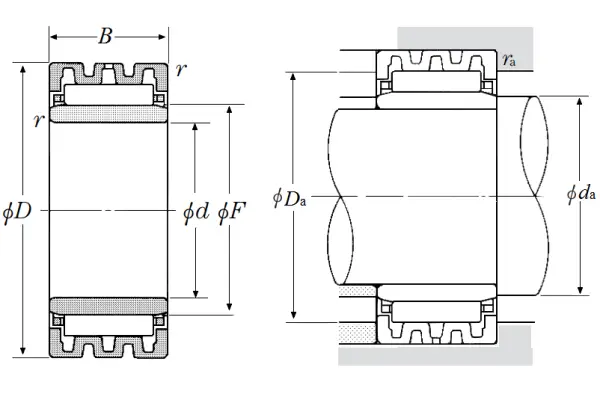

Dimensional Specifications
d
32.000 mm
D
52.000 mm
F
40.000 mm
B
20.000 mm
r
0.600 mm
da min
36.000 mm
Da max
46.000 mm
ras max
0.600 mm
