NTN NA4922S
Clearance-Adjustable Needle Roller Bearings w/ Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Clearance-Adjustable Needle Roller Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Material
Steel
Limiting Speed - Oil
3200 RPM
Limiting Speed - Grease
2100 RPM
Precision
ISO Class 0
Configuration
One
Enclosure
Open
Bearing Design
w/ Inner Ring
Oil Hole
w/ Oil Hole
Radial Internal Clearance
CN
Static Load Rating
184000 N
Dynamic Load Rating
75500 N
Weight
2.120 kg
Operating Temperature Range
-40 to 120 ºC

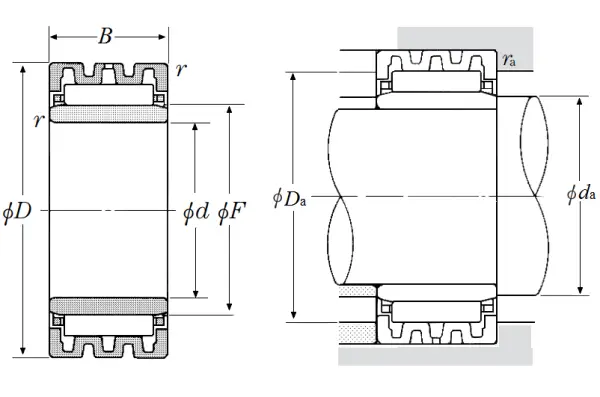

Dimensional Specifications
d
110.000 mm
D
150.000 mm
F
125.000 mm
B
40.000 mm
r
1.100 mm
da min
116.500 mm
Da max
135.000 mm
ras max
1.000 mm
