NTN NAO-65X95X30
Machined-Ring Needle Roller Bearings - Separable Type w/ Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Machined-Ring Needle Roller Bearing - Separable Type
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Material
Steel
Limiting Speed - Oil
5500 RPM
Limiting Speed - Grease
3600 RPM
Precision
ISO Class 0
Configuration
One
Enclosure
Open
Bearing Design
w/ Inner Ring
Oil Hole
w/ Oil Hole
Radial Internal Clearance
CN
Static Load Rating
157000 N
Dynamic Load Rating
67500 N
Operating Temperature Range
-40 to 120 ºC

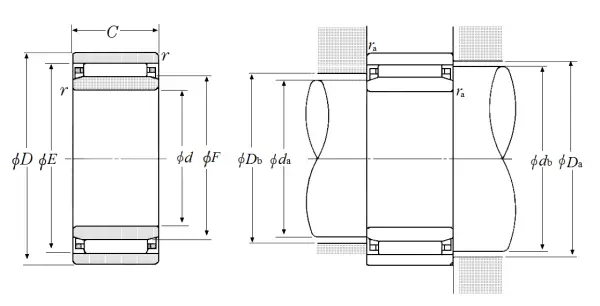

Dimensional Specifications
d
65.000 mm
D
95.000 mm
F
75.000 mm
E
83.000 mm
C
30.000 mm
r
1.000 mm
da min
70.000 mm
Da max
90.000 mm
db min
82.200 mm
Db max
76.000 mm
ras max
1.000 mm
