NTN NAO-70X100X60ZW
Machined-Ring Needle Roller Bearings - Separable Type w/ Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
NAO-70X100X60ZW
Technical Specifications
Type
Machined-Ring Needle Roller Bearing - Separable Type
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Material
Steel
Limiting Speed - Oil
5000 RPM
Limiting Speed - Grease
3300 RPM
Precision
ISO Class 0
Configuration
Two
Enclosure
Open
Bearing Design
w/ Inner Ring
Oil Hole
w/ Oil Hole
Radial Internal Clearance
CN
Static Load Rating
335000 N
Dynamic Load Rating
119000 N
Operating Temperature Range
-40 to 120 ºC

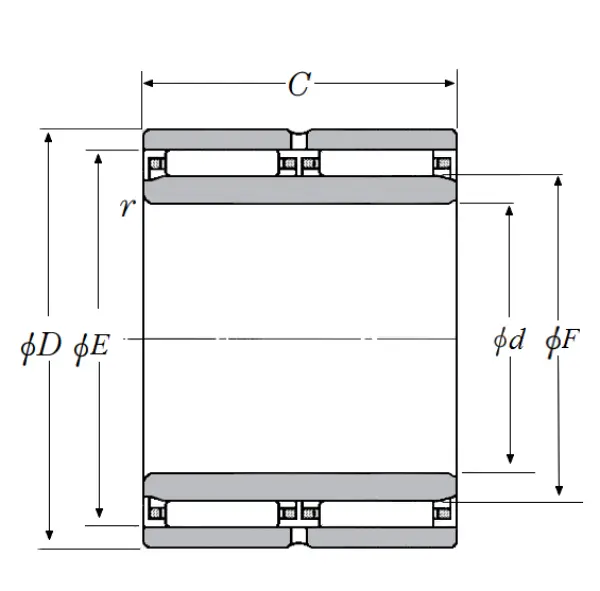

Dimensional Specifications
d
70.000 mm
D
100.000 mm
F
80.000 mm
E
88.000 mm
C
60.000 mm
r
1.000 mm
da min
75.000 mm
Da max
95.000 mm
db min
87.200 mm
Db max
81.000 mm
ras max
1.000 mm
