NTN NAO-80X110X30
Machined-Ring Needle Roller Bearings - Separable Type w/ Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Machined-Ring Needle Roller Bearing - Separable Type
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Material
Steel
Limiting Speed - Oil
4400 RPM
Limiting Speed - Grease
3000 RPM
Precision
ISO Class 0
Configuration
One
Enclosure
Open
Bearing Design
w/ Inner Ring
Oil Hole
w/ Oil Hole
Radial Internal Clearance
CN
Static Load Rating
184000 N
Dynamic Load Rating
72500 N
Operating Temperature Range
-40 to 120 ºC

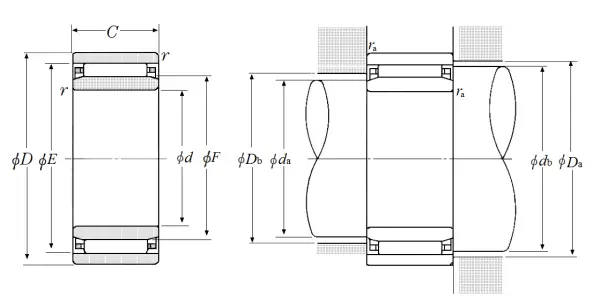

Dimensional Specifications
d
80.000 mm
D
110.000 mm
F
90.000 mm
E
98.000 mm
C
30.000 mm
r
1.000 mm
da min
85.000 mm
Da max
105.000 mm
db min
97.200 mm
Db max
91.000 mm
ras max
1.000 mm
