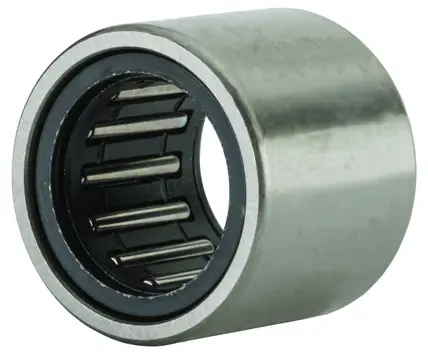

NTN NK15/20
Machined-Ring Needle Roller Bearings w/o Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Needle Roller Bearing
Roller Type
Needle
Configuration
One
Material
High Carbon Chrome Steel
Cage Material
Steel
Limiting Speed - Oil
23000 RPM
Limiting Speed - Grease
15000 RPM
Precision
ISO Class 0
Enclosure
Open
Static Load Rating
17200 N
Dynamic Load Rating
13800 N
Weight
0.027 kg
Operating Temperature Range
-40 to 120 ºC

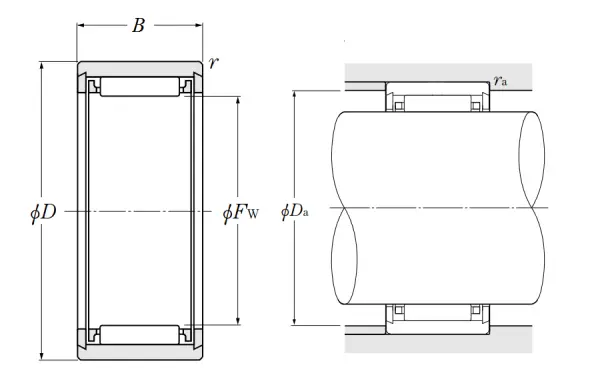

Dimensional Specifications
Fw
15.000 mm
Fw Tolerance
0.027/0.016 mm
D
23.000 mm
C
20.000 mm
r
0.300 mm
Da max
21.000 mm
ras max
0.300 mm
