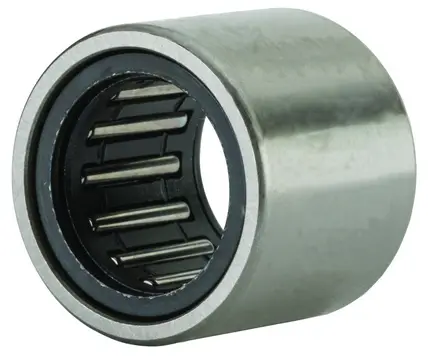

NTN NKS22
Machined-Ring Needle Roller Bearings w/o Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Needle Roller Bearing
Roller Type
Needle
Configuration
One
Material
High Carbon Chrome Steel
Cage Material
Steel
Limiting Speed - Oil
18000 RPM
Limiting Speed - Grease
12000 RPM
Precision
ISO Class 0
Enclosure
Open
Static Load Rating
23300 N
Dynamic Load Rating
17700 N
Weight
0.062 kg
Operating Temperature Range
-40 to 120 ºC

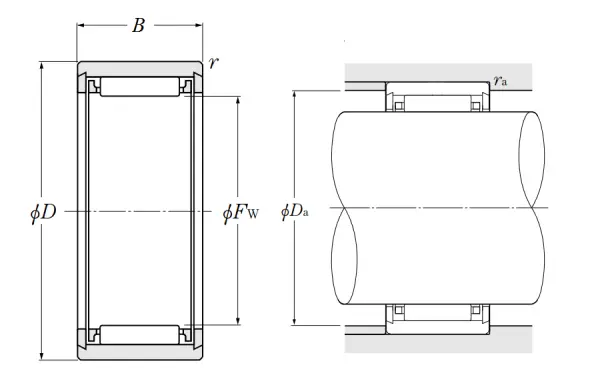

Dimensional Specifications
Fw
22.000 mm
D
35.000 mm
C
20.000 mm
r
0.600 mm
Da max
25.000 mm
ras max
0.600 mm
