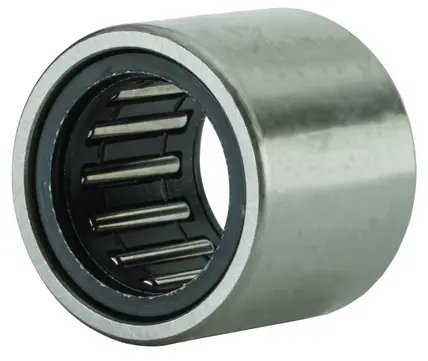

NTN NKS70
Machined-Ring Needle Roller Bearings w/o Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Needle Roller Bearing
Roller Type
Needle
Configuration
One
Material
High Carbon Chrome Steel
Cage Material
Steel
Limiting Speed - Oil
5500 RPM
Limiting Speed - Grease
3700 RPM
Precision
ISO Class 0
Enclosure
Open
Static Load Rating
103000 N
Dynamic Load Rating
49500 N
Weight
0.380 kg
Operating Temperature Range
-40 to 120 ºC

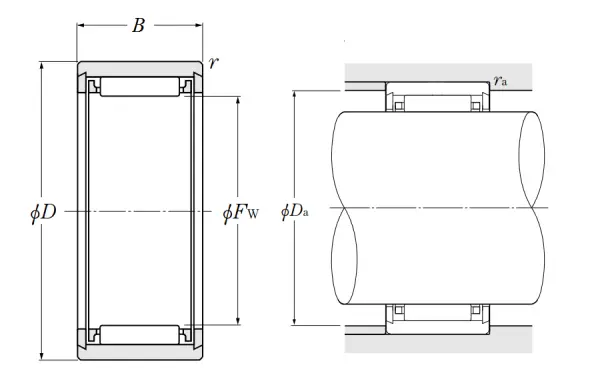

Dimensional Specifications
Fw
70.000 mm
D
90.000 mm
C
28.000 mm
r
1.100 mm
Da max
74.000 mm
ras max
1.100 mm
