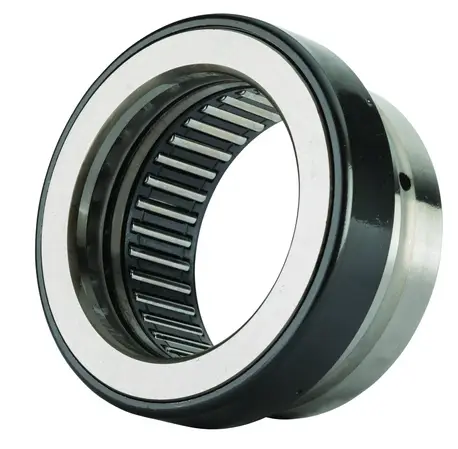

NTN NKX30
Complex Bearing w/o Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Complex Bearing
Bore Type
Round
Configuration
One
Clearance
CN
Material
High Carbon Chrome Steel
Cage Material
Pressed Steel
Limiting Speed - Oil
6200 RPM
Limiting Speed - Grease
4300 RPM
Precision
ISO Class 0
Enclosure
Open
Axial Static Load Rating
42000 N
Axial Dynamic Load Rating
20400 N
Radial Static Load Rating
39500 N
Radial Dynamic Load Rating
22300 N
Weight
0.140 kg
Operating Temperature Range
-40 to 120 ºC

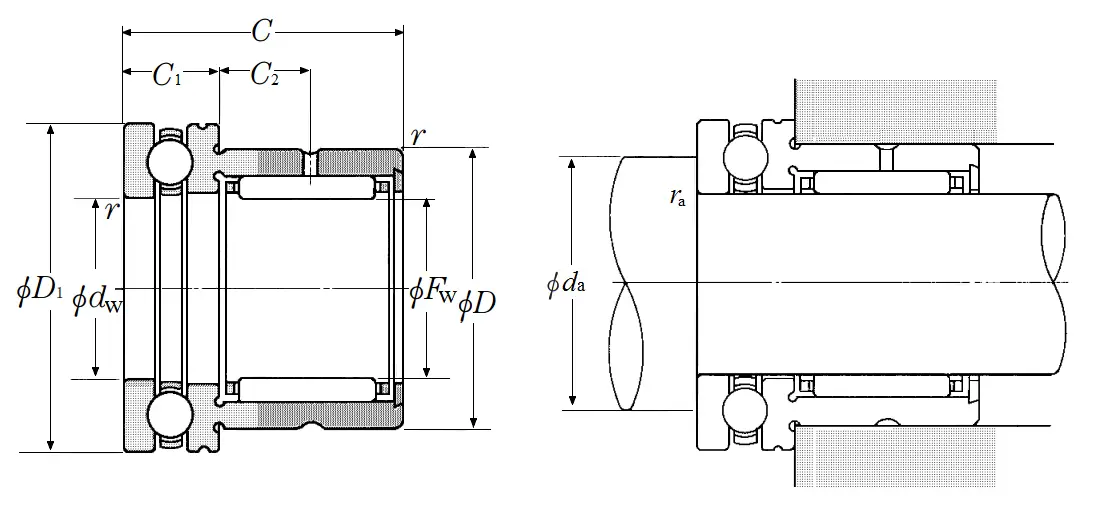

Dimensional Specifications
Fw
30.000 mm
Fw Tolerance
0.061/0.040 mm
dw
30.000 mm
dw Tolerance
0.033/0.020 mm
D
42.000 mm
D1
47.000 mm
C
30.000 mm
C Tolerance
0/-0.250 mm
C1
11.000 mm
C1 Tolerance
0/-0.200 mm
C2
9.500 mm
r
0.600 mm
da min
40.000 mm
ras max
0.600 mm
