NTN NKX60+1R50X60X25
Complex Bearing w/ Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Complex Bearing
Bore Type
Round
Configuration
One
Clearance
CN
Material
High Carbon Chrome Steel
Cage Material
Pressed Steel
Limiting Speed - Oil
3700 RPM
Limiting Speed - Grease
2600 RPM
Precision
ISO Class 0
Enclosure
Open
Weight
0.635 kg
Axial Static Load Rating
113000 N
Axial Dynamic Load Rating
41500 N
Radial Static Load Rating
71500 N
Radial Dynamic Load Rating
29800 N
Operating Temperature Range
-40 to 120 ºC

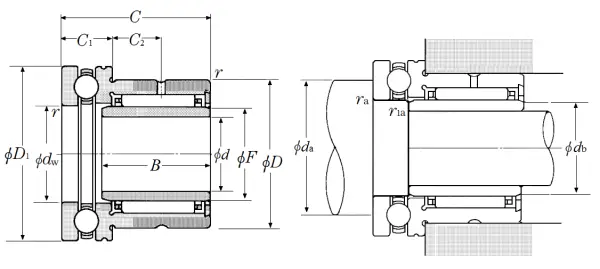

Dimensional Specifications
d
50.000 mm
dw
60.000 mm
dw Tolerance
0.090/0.060 mm
D
72.000 mm
D1
85.000 mm
B
25.000 mm
F
60.000 mm
C (0/-0.250)
40.000 mm
C1 (0/-0.20)
17.000 mm
C2
12.000 mm
r
1.000 mm
r1
1.000 mm
da min
75.000 mm
db min
55.000 mm
ras max
1.000 mm
r1as max
1.000 mm
