NTN NKX70Z+1R60X70X25
Complex Bearing w/ Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Complex Bearing
Bore Type
Round
Configuration
One
Clearance
CN
Material
High Carbon Chrome Steel
Cage Material
Pressed Steel
Limiting Speed - Oil
3400 RPM
Limiting Speed - Grease
2400 RPM
Precision
ISO Class 0
Enclosure
Open
Weight
0.837 kg
Axial Static Load Rating
127000 N
Axial Dynamic Load Rating
43000 N
Radial Static Load Rating
86000 N
Radial Dynamic Load Rating
36500 N
Operating Temperature Range
-40 to 120 ºC

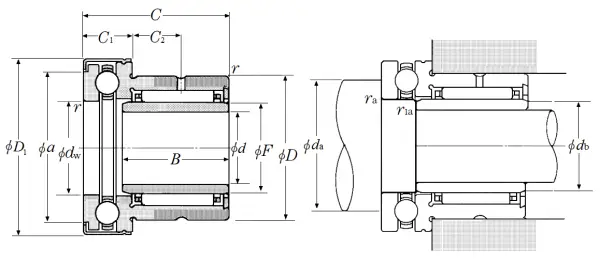

Dimensional Specifications
d
60.000 mm
dw
70.000 mm
dw Tolerance
0.090/0.060 mm
D
85.000 mm
D1
96.500 mm
B
25.000 mm
F
70.000 mm
C (0/-0.250)
40.000 mm
C1 (0/-0.20)
18.000 mm
C2
11.000 mm
a
90.500 mm
r
1.000 mm
r1
1.000 mm
da min
85.000 mm
db min
65.000 mm
ras max
1.000 mm
r1as max
1.000 mm
