NTN NKXR17T2+1R14X17X17
Complex Bearing w/ Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Complex Bearing
Bore Type
Round
Configuration
One
Clearance
CN
Material
High Carbon Chrome Steel
Cage Material
Nylon
Limiting Speed - Oil
10000 RPM
Limiting Speed - Grease
2500 RPM
Precision
ISO Class 0
Enclosure
Open
Axial Static Load Rating
31000 N
Axial Dynamic Load Rating
13400 N
Radial Static Load Rating
14400 N
Radial Dynamic Load Rating
10400 N
Operating Temperature Range
-40 to 120 ºC

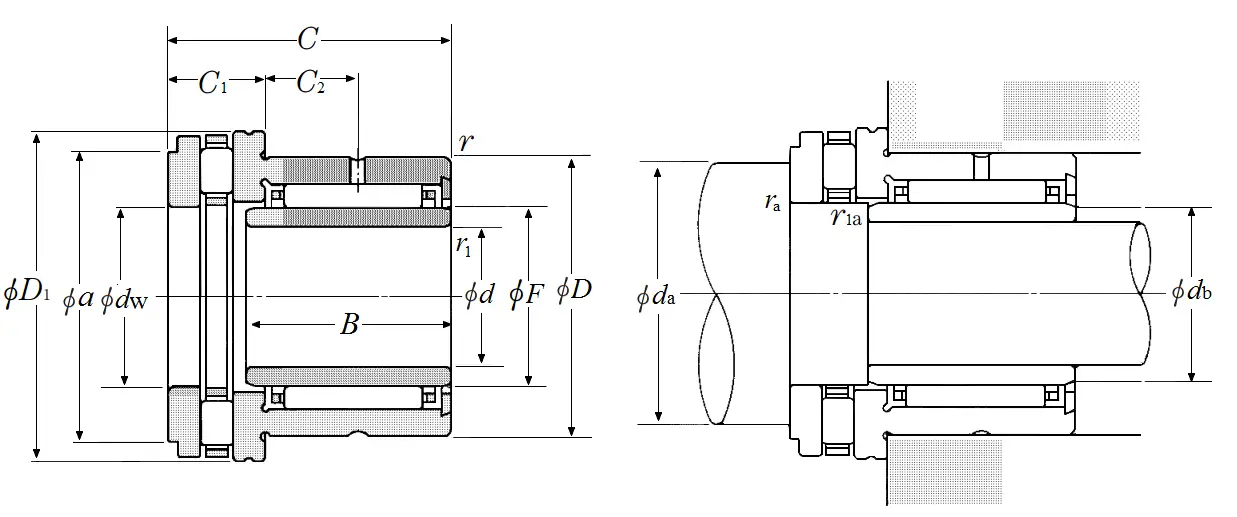

Dimensional Specifications
d
14.000 mm
dw
17.000 mm
dw Tolerance
0.050/0.032 mm
D
26.000 mm
D1
30.000 mm
B
17.000 mm
F
17.000 mm
C (0/-0.250)
25.000 mm
C1 (0/-0.20)
9.000 mm
C2
8.000 mm
a
25.700 mm
r
0.300 mm
r1
0.300 mm
da min
27.000 mm
db min
16.000 mm
ras max
0.300 mm
r1as max
0.300 mm
