NTN NKXR20T2+1R17X20X20
Complex Bearing w/ Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Complex Bearing
Bore Type
Round
Configuration
One
Clearance
CN
Material
High Carbon Chrome Steel
Cage Material
Nylon
Limiting Speed - Oil
8500 RPM
Limiting Speed - Grease
2100 RPM
Precision
ISO Class 0
Enclosure
Open
Axial Static Load Rating
46500 N
Axial Dynamic Load Rating
20200 N
Radial Static Load Rating
27100 N
Radial Dynamic Load Rating
16400 N
Operating Temperature Range
-40 to 120 ºC

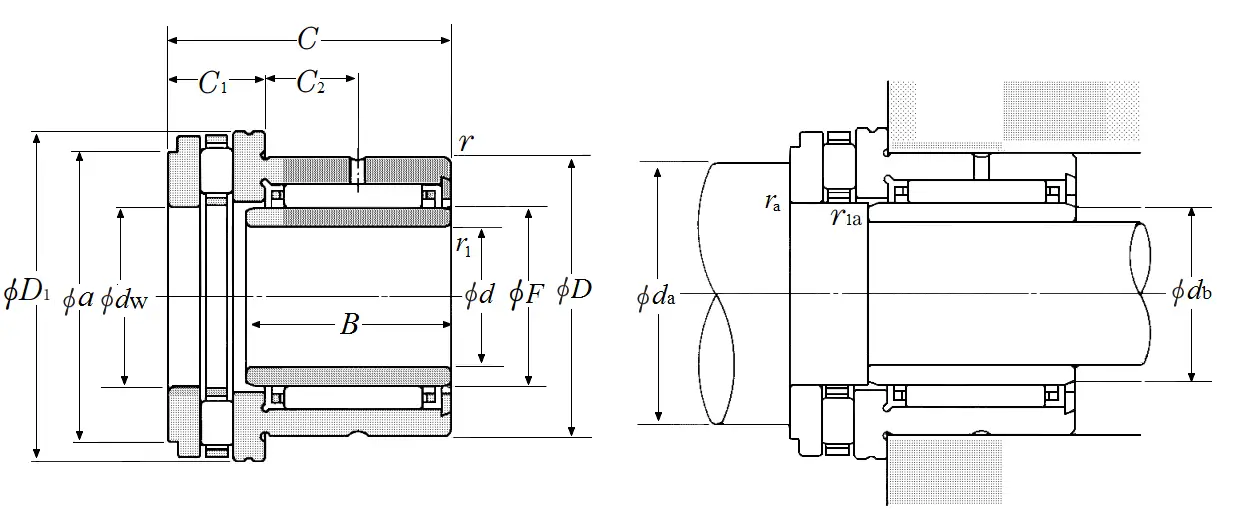

Dimensional Specifications
d
17.000 mm
dw
20.000 mm
dw Tolerance
0.061/0.040 mm
D
30.000 mm
D1
35.000 mm
B
20.000 mm
F
20.000 mm
C (0/-0.250)
30.000 mm
C1 (0/-0.20)
10.000 mm
C2
10.500 mm
a
30.700 mm
r
0.300 mm
r1
0.300 mm
da min
32.000 mm
db min
19.000 mm
ras max
0.300 mm
r1as max
0.300 mm
