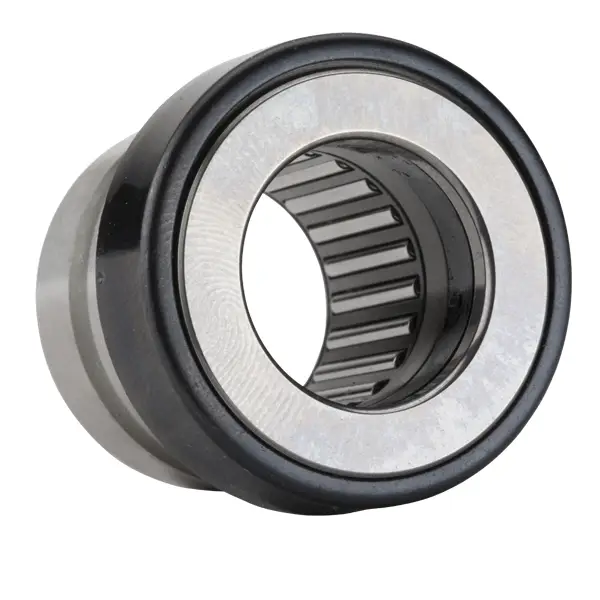

NTN NKXR25T2Z
Complex Bearing w/o Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Complex Bearing
Bore Type
Round
Configuration
One
Clearance
CN
Material
High Carbon Chrome Steel
Cage Material
Nylon
Limiting Speed - Oil
7000 RPM
Limiting Speed - Grease
1800 RPM
Precision
ISO Class 0
Enclosure
Open
Axial Static Load Rating
68000 N
Axial Dynamic Load Rating
27300 N
Radial Static Load Rating
24000 N
Radial Dynamic Load Rating
14200 N
Weight
0.135 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
Fw
25.000 mm
Fw Tolerance
0.061/0.040 mm
dw
25.000 mm
dw Tolerance
0.033/0.020 mm
D
37.000 mm
D1
43.000 mm
C
30.000 mm
C Tolerance
0/-0.250 mm
C1
11.000 mm
C1 Tolerance
0/-0.200 mm
C2
9.500 mm
a
37.700 mm
r
0.600 mm
da min
39.000 mm
ras max
0.600 mm
