NTN NKXR40Z+1R35X40X20
Complex Bearing w/ Inner Ring
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Complex Bearing
Bore Type
Round
Configuration
One
Clearance
CN
Material
High Carbon Chrome Steel
Cage Material
Pressed Steel
Limiting Speed - Oil
4800 RPM
Limiting Speed - Grease
1200 RPM
Precision
ISO Class 0
Enclosure
Open
Axial Static Load Rating
121000 N
Axial Dynamic Load Rating
43000 N
Radial Static Load Rating
52500 N
Radial Dynamic Load Rating
25900 N
Operating Temperature Range
-40 to 120 ºC

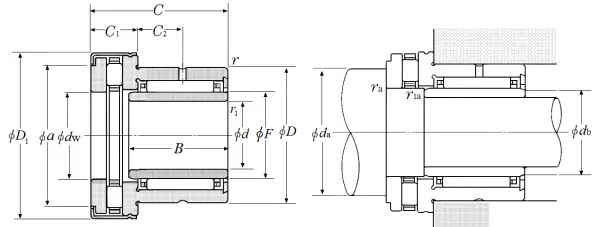

Dimensional Specifications
d
35.000 mm
dw
40.000 mm
dw Tolerance
0.075/0.050 mm
D
52.000 mm
D1
61.000 mm
B
20.000 mm
F
40.000 mm
C (0/-0.250)
32.000 mm
C1 (0/-0.20)
13.000 mm
C2
10.000 mm
a
55.700 mm
r
0.600 mm
r1
0.300 mm
da min
56.000 mm
db min
37.000 mm
ras max
0.600 mm
r1as max
0.300 mm
